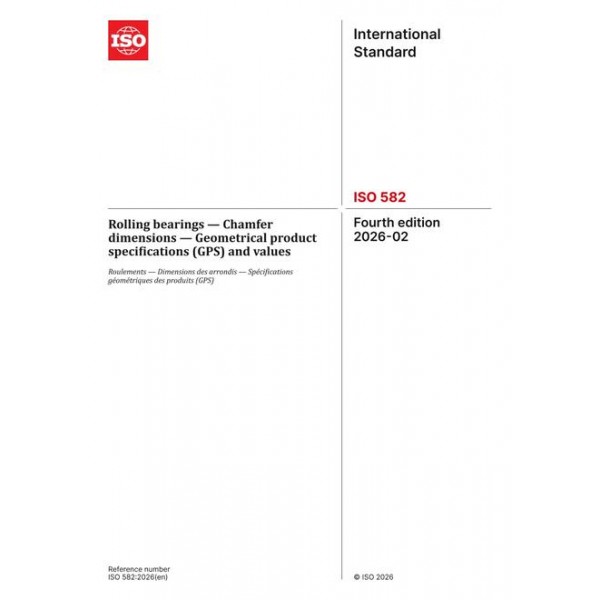

This document specifies the chamfer least material boundary for ring and washer chamfers of metric series rolling bearings for the corresponding radius maximum material boundaries. The radius maximum material boundaries are given in references[1],[2],[3],[4],[5],[6],[7].

Recommendations are given for the corresponding housing and shaft fillet radii.

Product Details

Published:

File Size:

Note:
